ASLF 'Anti-Strap-Loss-Function' Constant strap control
Automatic Strap feed
Strap width 5 - 12 mm, either
Strap end detection system with automatic discharge of remaining strap
Operation Terminal with Soft-Button
Torque controlled strap tension, adjustable
GreenTech energy concept, low power consumption
SAN - Small and Narrow
Table height steplessly adjustable
Removable front table top, without tools
Wear-free, energy saving direct-drive-motors
Low maintenance and low wear strap arch
Many specific options available, easily configurable
Interface for integration into automatic lines
Single strap, bundles/minute up to
Depending on tension force
Width in mm
Height in mm
Max. bundle height depending on
Weight in kg
Adjustable with 10 steps
Automatic strap tensioning
Tension at bundle in N
PP and PET Strap DIN EN 13 394
Width in mm
5 - 12
Thickness in mm
0.4 - 0.65
Heat seal. Tensile strength of welded joint is approx. 80% of the breaking strength of the strap
Core ID in mm
200 - 228
Core OD in mm
Width in mm
160 - 190
Wide Range Input 100-240V, 1AC; 47-63 Hz
Maximum fusing 16A (B-character)
Power consumption in kW approx.
Total weight approx. in kg
Temperature range in °C [°F]
5 - 45

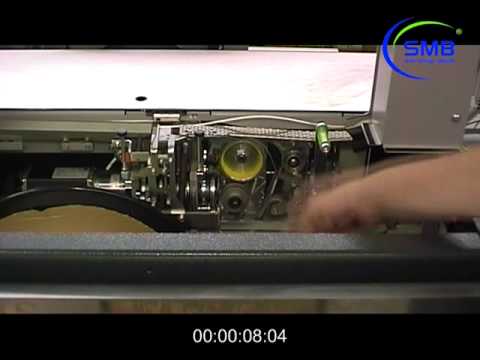

The Direct-Access-Technology allows direct access to the strap in the strap drive. The strap drive can be opened very quickly without tools by pressing an ergonomic control lever. The defective strap or a resulting disturbance can be easily dealt with in seconds. After closing the strap drive work can continue immediately.
The Anti-Strap-Loss-Function ensures that the strap no longer gets lost in the machine and is permanently available for the function modules. The machine is thus resilient to malfunction in the production process, which in turn increases the machine availability.
Work safety at high production speed is often achieved by means of safety devices. Alternatively, the SAO design combines all interests in one solution, i.e. work safety at high productivity via a safe design of the assembly group. Thus, eliminating inconvenient and cost-intensive protective devices becomes possible. Your advantage: Safe, direct operator access in case of product malfunctions during production actively reduces your accident quota and increases the productivity of your business.
The new strapping machines by SMB need up to 50% less energy than conventional machines.
Energy recovery, highly efficient drives, standard on-board voltage and also low-friction mechanical components are attributes of the new SMB technology.
EASY CONTROL permits all necessary settings using simple, clear operating elements and provides information about the clear status of the machine. EASY CONTROL is ideal particularly for low to medium processing ranges.

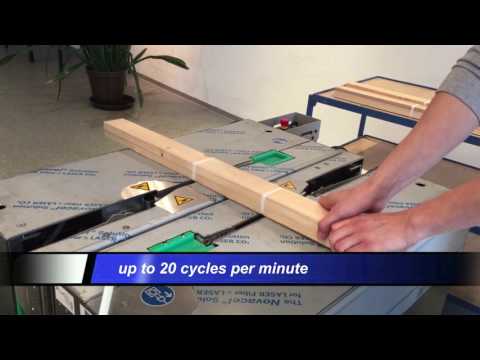

With immediate effect, processing of narrow profiles is possible without difficulty! The option “Small-And-Narrow” from SMB product family allows strapping of minimum product widths of 40 mm, depending on compressibility and strap tension needed. Easy opening of the strapped bundle is secured using an optional pull tab near the welding point.
The most important thing for you as the operator is when your packaging machine runs as long as possible with high availability as at the beginning of the product life. This characteristic is achieved by simple and robust design, targeted selection of suitable materials and as few actuators as possible.
This enables us to clearly distinguish ourselves from the usual machines of our competitors. For you this means a noticeably higher Overall Equipment Effectiveness (OEE).
