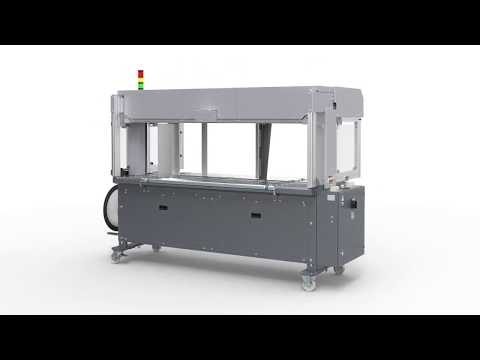

SMB VERO-C

The strapping machine for folded boxes and wide products

SMB VERO-C

  • Robust and extremely low maintenance
  • Pneumatic free
  • Highest rate of availability
  • 5 - 12 mm strap
  • Optimal strap guide at the strapping level

Equipment

  • 5000 bundle recipes
  • ASLF 'Anti-Strap-Loss-Function' Constant strap control
  • Automatic Strap feed
  • Strap width 5 - 12 mm, either
  • DAT 'Direct-Access-Technology'
  • The exclusive eject function avoids strap jam
  • Torque controlled strap tension, adjustable
  • Upstream and downstream interlocks
  • EPP 'Exact Product Path'
  • Conveyor speed steplessly adjustable
  • GreenTech energy concept, low power consumption
  • MFT 'Mono-Frame-Technology'
  • OPTIONAL: Bundle compensator, side mounted
  • Bundle stops, optional
  • Bundle press, optional
  • SAO 'Safe and Open' - Safe without protection doors
  • SMART TOUCH 4.0 – Icon control concept
  • Table height steplessly adjustable
  • Bundle flow control
  • Wear-free, energy saving direct-drive-motors
  • Low maintenance and low wear strap arch
  • Many specific options available, easily configurable
A table of dimensions can be found in the data sheets for the machine. Alternatively, you can view this website on a desktop browser and receive the dimensions table at this point.
Arch Size WxH
Arch Size WxH
Arch Size WxH
1250x600
Arch Size WxH
1650x600
Sealing head centered
Sealing head centered
Sealing head centered
Sealing head centered
Order number
Order number
Order number
x49715
Order number
x49716
Total length + Coil
Total length + Coil
G
Total length + Coil
2170
Total length + Coil
2570
Total height
Total height
F
Total height
1555-1785
Total height
1555-1785
Position sealing head
Position sealing head
B
Position sealing head
700
Position sealing head
900
Inner width (arch)
Inner width (arch)
A
Inner width (arch)
1400
Inner width (arch)
1800
Arch width
Arch width
E
Arch width
1709
Arch width
2109
Inner height (with press)
Inner height (with press)
D
Inner height (with press)
505
Inner height (with press)
505
Inner height (arch)
Inner height (arch)
C
Inner height (arch)
640
Inner height (arch)
640
Table height
Table height
H
Table height
791-1021
Table height
791-1021
Weight in kg
Weight in kg
Weight in kg
380
Weight in kg
420

TECHNICAL SPECIFICATION

CAPACITY

Single strap, bundles/minute up to max. 32
At table belt speed in m/s 0.8
Based on bundle size l x w in mm 300 x 210
Depending on arch size and tension force

BUNDLES

Width in mm
Min. 100
Max. bundle width depending on arch size
Length in mm min. 150
Height in mm
Min. 30
Max. bundle height depending on arch size
Weight in kg max. 50

TRANSPORT SPEED

m/s 0,20 - 1,00

STRAP TENSION

Adjustable with 10 steps
Automatic strap tensioning
Tension at bundle in N max. 325
Tension path in mm max.

STRAPPING MATERIAL

Polypropylene DIN EN 13 394
Width in mm 5 - 12
Thickness in mm 0.4 - 0.65

SEALING METHOD

Heat seal. Tensile strength of welded joint is approx. 80% of the breaking strength of the strap

STRAP COIL

Core ID in mm 200
Core OD in mm 420
Width in mm 190 (160,180,200)

POWER SUPPLY

Wide Range Input 380-520V, 3AC; 47 63 Hz
Maximum fusing 16A (B-character)
Protection Type IP 54

POWER CONSUMPTION

Power consumption in kW approx. 0,30

OPERATING CONDITIONS

Temperature range in °C [°F] 5 - 45
