SMB CUBE

The fully automatic machine for universal use

SMB CUBE

  • Economical owing to highest availability
  • Robust and extremely low maintenance
  • Easy handling
  • Minimum space requirement
  • Best cost / benefit ratio

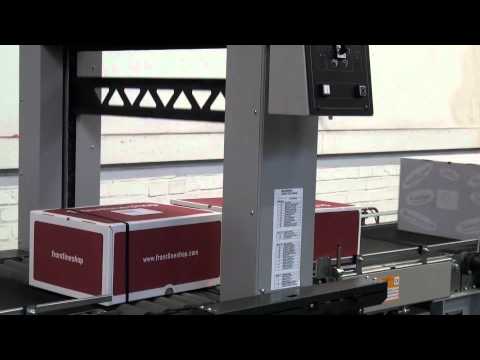

PLAY PLAY

Flagge en Flagge cz Flagge de Flagge dk Flagge es Flagge fi Flagge fr Flagge it Flagge lt Flagge lv Flagge nl Flagge no Flagge pl Flagge ru Flagge se Flagge tr
223A01_SMB_CUBE_600x600m_x36000f_with_press.zip (CAD 2D 1) 223A01_SMB_CUBE_800x600m_x36600g.zip (CAD 2D 2) 223A01_SMB_CUBE_800x600amv_x37600f.zip (CAD 2D 3) 223A01_SMB_CUBE_800x600amh_x49625b.zip (CAD 2D 4)
Link in Zwischenablage kopieren Link per E-Mail versenden

Equipment

  • ASLF 'Anti-Strap-Loss-Function' Constant strap control
  • Automatic Strap feed
  • Strap width 5 - 12 mm, either
  • DAT 'Direct-Access-Technology'
  • The exclusive eject function avoids strap jam
  • Torque controlled strap tension, adjustable
  • Upstream and downstream interlocks
  • Conveyor speed steplessly adjustable
  • For use with PP and PET strap
  • GreenTech energy concept, low power consumption
  • High-Speed-Kit, optional
  • Intuitive operator interface
  • Machine movable
  • MFT 'Mono-Frame-Technology'
  • Bundle press, optional
  • SAO 'Safe and Open' - Safe without protection doors
  • Table height steplessly adjustable
  • Bundle flow control
  • Wear-free, energy saving direct-drive-motors
  • Low maintenance and low wear strap arch
  • Quality standard equipment
  • Many specific options available, easily configurable
