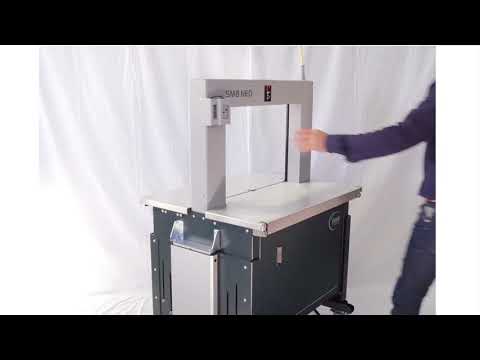

SMB NEO

The NEW CLASS for Automatic strapping machine

SMB NEO

  • User-friendly and intuitive
  • Economical owing to highest availability
  • Robust and extremely low maintenance
  • Powerful
  • Variable strap width

Equipment

  • 60 cycles per minute, with High-Speed Kit (optional)
  • ASLF 'Anti-Strap-Loss-Function' Constant strap control
  • Automatic cycle start by tabletop sensor (optional)
  • Automatic Strap feed
  • Strap width 5 - 12 mm, either
  • Strap end detection system with automatic discharge of remaining strap
  • Automatic strap tensioning (optional)
  • Coil holder inside (either externally)
  • Operation Terminal with Soft-Button
  • DAT 'Direct-Access-Technology'
  • The exclusive eject function avoids strap jam
  • Torque controlled strap tension, adjustable
  • Single-Copy-Strap
  • Foot-bar at the operator side
  • Machine movable
  • MFT 'Mono-Frame-Technology'
  • Power connection top (either bottom)
  • Table height steplessly adjustable
  • Table top front hinged by 270 °, removable
  • Wear-free, energy saving direct-drive-motors
  • Low maintenance and low wear strap arch
  • Many specific options available, easily configurable
Eine Masstabelle finden Sie in den Datenblättern der Maschine. Alternativ können Sie diese Webseite an einem Desktop-Browser betrachten und erhalten die Masstabelle an dieser Stelle.
Arch Size WxH
Arch Size WxH
Arch Size WxH
600 x 400
Arch Size WxH
600 x 600
Arch Size WxH
800 x 400
Arch Size WxH
800 x 600
Arch Size WxH
800 x 800
Arch Size WxH
1250x600
Arch Size WxH
1250x800
Arch Size WxH
1250x1250
Arch Size WxH
1650x600
Order number
Order number
Order number
x28000
Order number
x28005
Order number
x28009
Order number
x28006
Order number
x28007
Order number
x44880
Order number
x47658
Order number
x51103
Order number
x47900
Machine width
Machine width
H
Machine width
743
Machine width
743
Machine width
743
Machine width
743
Machine width
743
Machine width
746
Machine width
746
Machine width
746
Machine width
746
Total length
Total length
D
Total length
956
Total length
~ 956
Total length
~ 1156
Total length
~ 1156
Total length
~ 1156
Total length
~ 1700
Total length
~ 1700
Total length
~ 1700
Total length
~ 2100
Total length + Coil
Total length + Coil
G
Total length + Coil
1210
Total length + Coil
~ 1210
Total length + Coil
~ 1410
Total length + Coil
~ 1410
Total length + Coil
~ 1410
Total length + Coil
~ 1954
Total length + Coil
~ 1954
Total length + Coil
~ 1954
Total length + Coil
~ 2354
Total height
Total height
F
Total height
~1365 - 1485
Total height
~1565-1685
Total height
~1365 - 1485
Total height
~1565-1685
Total height
~1765-1885
Total height
~1565-1685
Total height
~1765-1885
Total height
~2252-2367
Total height
~1565-1685
Inner width (arch)
Inner width (arch)
A
Inner width (arch)
~ 650
Inner width (arch)
~ 650
Inner width (arch)
~ 850
Inner width (arch)
~ 850
Inner width (arch)
~ 850
Inner width (arch)
~ 1400
Inner width (arch)
~ 1400
Inner width (arch)
~ 1400
Inner width (arch)
~ 1800
Arch width
Arch width
C
Arch width
~ 910
Arch width
~ 910
Arch width
~ 1110
Arch width
~ 1110
Arch width
~ 1110
Arch width
~ 1700
Arch width
~ 1700
Arch width
~ 1700
Arch width
~ 2100
Inner height (arch)
Inner height (arch)
B
Inner height (arch)
~ 448
Inner height (arch)
~ 648
Inner height (arch)
~ 448
Inner height (arch)
~ 648
Inner height (arch)
~ 848
Inner height (arch)
~ 648
Inner height (arch)
~ 848
Inner height (arch)
~ 1300
Inner height (arch)
~ 648
Arch heigth
Arch heigth
E
Arch heigth
~ 573
Arch heigth
~ 773
Arch heigth
~ 573
Arch heigth
~ 773
Arch heigth
~ 973
Arch heigth
~ 773
Arch heigth
~ 973
Arch heigth
~ 1421
Arch heigth
~ 773
Table height with casters
Table height with casters
Table height with casters
795-910
Table height with casters
795-910
Table height with casters
795-910
Table height with casters
795-910
Table height with casters
795-910
Table height with casters
831-946
Table height with casters
831-946
Table height with casters
831-946
Table height with casters
831-946
Weight in kg
Weight in kg
Weight in kg
180
Weight in kg
185
Weight in kg
195
Weight in kg
200
Weight in kg
205
Weight in kg
260
Weight in kg
265
Weight in kg
275
Weight in kg
295
max. bundle width
max. bundle width
max. bundle width
600
max. bundle width
600
max. bundle width
800
max. bundle width
800
max. bundle width
800
max. bundle width
1250
max. bundle width
1250
max. bundle width
1250
max. bundle width
1650
max. bundle height
max. bundle height
max. bundle height
400
max. bundle height
600
max. bundle height
400
max. bundle height
600
max. bundle height
800
max. bundle height
600
max. bundle height
800
max. bundle height
1250
max. bundle height
600

TECHNICAL SPECIFICATION

CAPACITY

Single strap, bundles/minute up to 55
Depending on arch size and tension force

BUNDLES

Width in mm
Min. 55
Max. bundle width depending on arch size
Height in mm
Min. 5
Max. bundle height depending on arch size
(see drawing)
Weight in kg
Max. 30

STRAP TENSION

Adjustable with 10 steps
Automatic strap tensioning
Tension at bundle in N
Max. 325

STRAPPING MATERIAL

Polypropylene DIN EN 13 394
Width in mm 5 - 12
Thickness in mm 0.4 - 0.65

SEALING METHOD

Heat seal. Tensile strength of welded joint is approx. 80% of the breaking strength of the strap

STRAP COIL

Core ID in mm 200 - 228
Core OD in mm 420
Width in mm 160 - 190

POWER SUPPLY

Wide Range Input 100-240V, 1AC; 47-63 Hz
Maximum fusing 16A (B-character)
Protection Type IP 22

POWER CONSUMPTION

Power consumption in kW approx. 0,2

OPERATING CONDITIONS

Temperature range in °C [°F] 5 - 45
