SMB COR

The most variable strapping machine for folded boxes

SMB COR

  • Universal strapping of 3 and 4-point folding boxes
  • User-friendly and intuitive
  • Format change in less than 2 minutes
  • Robust and extremely low maintenance
  • ETS - pull-out strapping module
  • High capacity

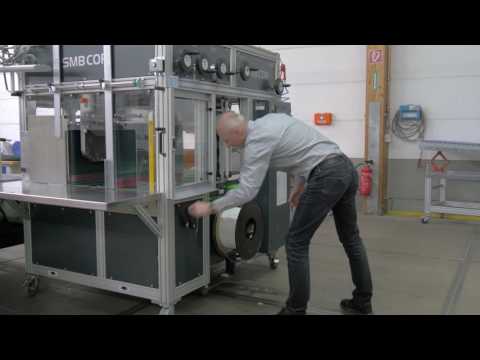

PLAY PLAY

Flagge en Flagge cz Flagge de Flagge dk Flagge es Flagge fi Flagge fr Flagge it Flagge lt Flagge lv Flagge nl Flagge no Flagge pl Flagge ru Flagge se Flagge tr
Link in Zwischenablage kopieren Link per E-Mail versenden

Equipment

  • 5000 bundle recipes
  • ASLF 'Anti-Strap-Loss-Function' Constant strap control
  • Strap end detection system with automatic discharge of remaining strap
  • DAT 'Direct-Access-Technology'
  • EPP 'Exact Product Path'
  • GreenTech energy concept, low power consumption
  • OPTIONAL:Bundle stop plate for second strap
  • OPTIONAL: Bundle compensator backside
  • OPTIONAL: Narrow products, min. package width 95 mm
  • OPTIONAL: Lateral belts with quick adjustment
  • OPTIONAL: Fully automatic format adjustment, format change in 30 seconds
  • Bundle stop plate with pre-positioning, no contact with bundle when clearing the bundle, with quick adjustment
  • Bundle press, pre-positioning and electric driven
  • Production data analysis via Ethernet/USB

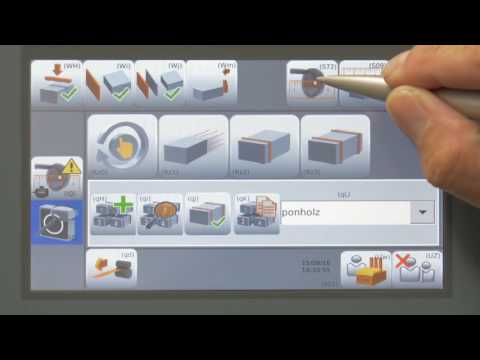

  • SMART TOUCH 4.0 – Icon control concept
  • Low maintenance and low wear strap arch
  • Many specific options available, easily configurable
  • Safe alignment also of solid board and thin corrugated board
  • Preparation for network access and remote maintenance access via VPN
A table of dimensions can be found in the data sheets for the machine. Alternatively, you can view this website on a desktop browser and receive the dimensions table at this point.
Arch Size WxH
Arch Size WxH
mm
Arch Size WxH
850x340
Arch Size WxH
1250x340
Arch Size WxH
1650x340
Sealing head centered
Sealing head centered
Sealing head centered
Sealing head centered
Sealing head centered
Order number
Order number
Order number
x47252
Order number
x47404
Order number
x48046
Machine width
Machine width
G
Machine width
1410
Machine width
1810
Machine width
2210
Total height
Total height
H
Total height
2110-2300
Total height
2110-2300
Total height
2110-2300
Table height
Table height
D
Table height
820-1010
Table height
820-1010
Table height
820-1010
Table height with casters
Table height with casters
Table height with casters
910
Table height with casters
910
Table height with casters
910
Weight in kg
Weight in kg
Weight in kg
ca. 1250
Weight in kg
ca. 1450
Weight in kg
ca. 1550
bundle width
bundle width
A
bundle width
130-850
bundle width
130-1250
bundle width
140-1650
max. bundle height
max. bundle height
B
max. bundle height
340
max. bundle height
340
max. bundle height
340
Additional space needed
Additional space needed
F
Additional space needed
1100
Additional space needed
1300
Additional space needed
1500
Distance bundle stop
Distance bundle stop
C
Distance bundle stop
25-580
Distance bundle stop
25-580
Distance bundle stop
25-580
Total width + Coil
Total width + Coil
J
Total width + Coil
1650
Total width + Coil
2050
Total width + Coil
2450

TECHNICAL SPECIFICATION

CAPACITY

Single strap, bundles/minute up to max. 32
Parallel strap, bundles/minute max. 21
At table belt speed in m/s 1.4
Based on bundle size l x w x h in mm 300 x 210 x 150
Depending on arch size and tension force

BUNDLES

Width in mm max.
Length in mm min. 150
Height in mm min. 50
Weight in kg max. 20

TRANSPORT SPEED

m/s 0,40 - 1,40

STRAP TENSION

Adjustable with 10 steps
Tension at bundle in N max. 400
Tension path in mm max.

STRAPPING MATERIAL

Polypropylene DIN EN 13 394
Width in mm 5 - 12
Thickness in mm 0.35 - 0.65

SEALING METHOD

Heat seal. Tensile strength of welded joint is approx. 80% of the breaking strength of the strap

STRAP COIL

Core ID in mm 200
Core OD in mm 420
Width in mm 190

POWER SUPPLY

Wide Range Input 380-520V, 3AC; 47 63 Hz
Maximum fusing 16A (B-character)
Protection Type IP 54

POWER CONSUMPTION

Power consumption in kW approx. 0,98

PNEUMATICS

Operating pressure in bar 6
Air consumption per cycle in l (free air) 4.2

OPERATING CONDITIONS

Temperature range in °C [°F] 5 - 45
